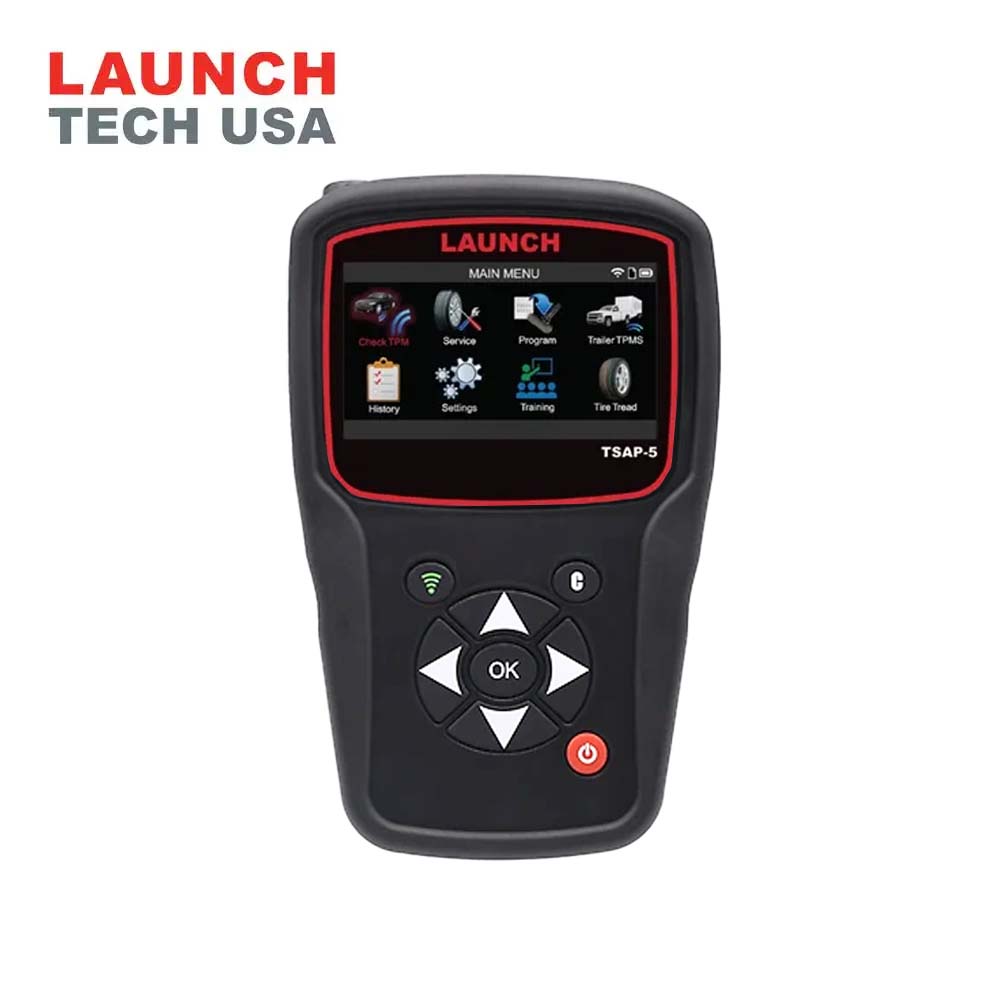

Launch – TSAP-5 Touchscreen TPMS Tool

The TSAP-5 is an all-new comprehensive, touchscreen TPMS tool. The TSAP-5 is designed for the everyday technician looking to perform service right the first time, every time. Some of the features include Reading Clearing TPMS DTC s, DOT Recording, 100% OEM sensor diagnostic coverage, 90% OBDII coverage, Vehicle VIN scanning, and more.

Features:

• Touch-screen Interface
• Make, Model, Year lookup via VIN scan
• Activates all OEM sensors and displays all sensor data
• Worldwide vehicle coverage, always up to date
• Ability to reset vehicles via both manual and OBDII relearn
• Programs all leading aftermarket sensor brands
• Provides TPMS relearn procedures on-screen
• Indicates OE sensor and service kit part numbers
• Displays TPMS data for up to 7 tires in one screen
• Supports Placard Adjustment
• Wi-Fi Updating
• DOT Manual Recording
• Read Clear TPMS DTC Codes
• Tire Tread Depth Functionality (Accessory Sold Separately)

• Specifications:

  Battery Type		Rechargeable Li-Po 4.2V 3000mAh
  Battery Life		Approximately 1,000 activations per full charge
  Tool Dimensions (L, W, D)		20.0 cm x 12.0 cm x 4.0 cm (7.9 x 4.7 x 1.6 )
  Tool Case Material		High Impact ABS
  Response Frequency		Frequencies: 315 MHz and 433.92 MHz (supporting most specific frequencies)
  Low Battery Indication		LCD bar graph display
  Tool Weight		Approx. 2 lbs.
  Temperature		Operation: -20°C to +45°C (-4°F to 131°F) Storage: -20°C to +45°C (-4°F to 131°F)
  Altitude		Maximum Operating Altitude: 3000m (10000ft)
  Environment		Indoor Outdoor Use (<80% Humidity)

  Comparison Function Chart: TSAP-3 vs TSAP-5

  Feature		TSAP-3		TSAP-5
  Touch Screen Interface				X
  Y M M VIN Scan Lookup				X
  WiFi Updating		X		X
  Activates all OEM sensors, displays all sensor data		X		X
  Reset vehicles via both OBD and manual relearn		X		X
  Provides on-screen relearn procedures		X		X
  Indicates OE sensor and service kit part numbers		X		X
  Program 20+ aftermarket sensors, including Launch LTR sensor		X		X
  Displays TPMS data up to 7 tires in one screen		X		X
  Supports placard adjustment		X		X
  DOT Recording				X
  Read Clear TPMS DTC Codes				X
  Tire Tread Depth Functionality				X
