Description

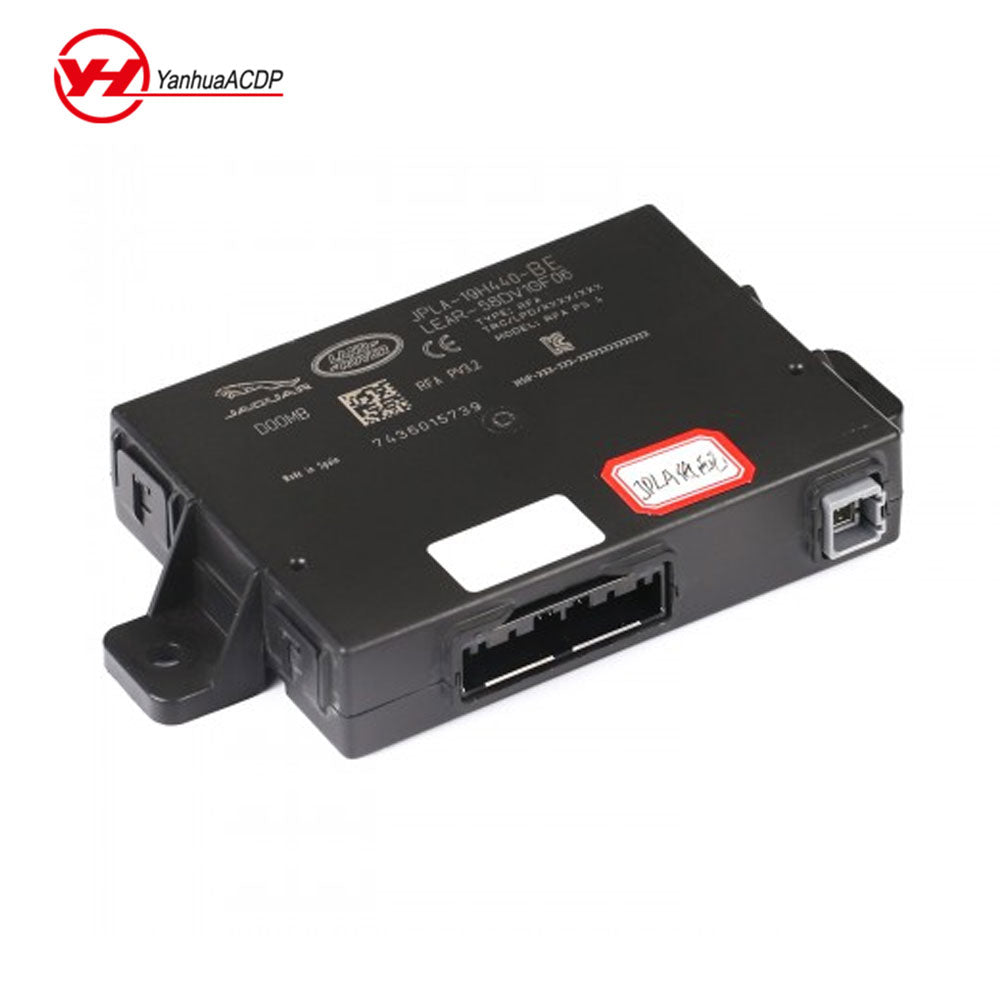

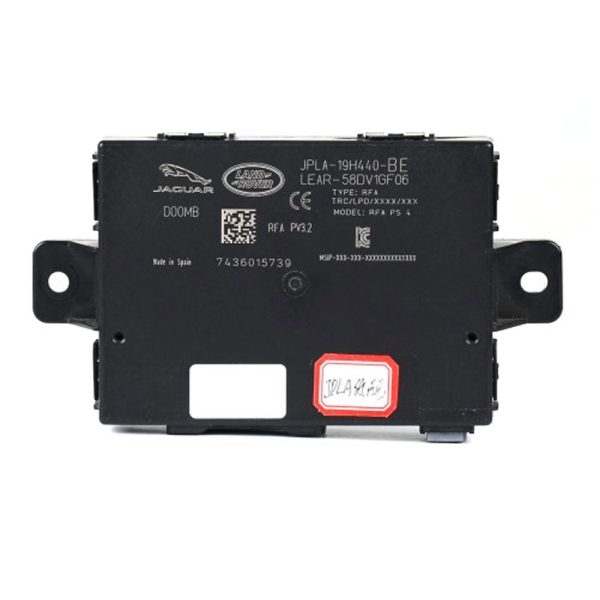

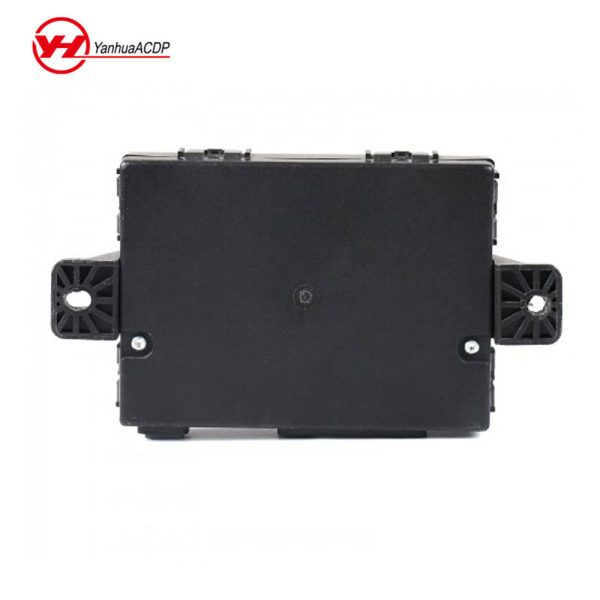

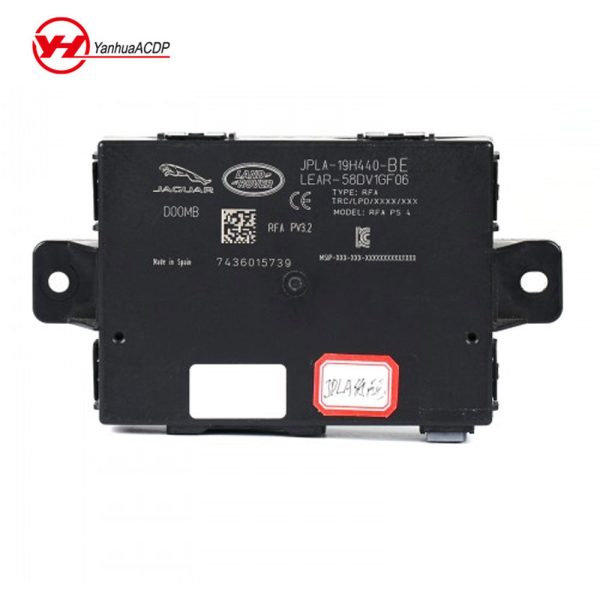

Yanhua ACDP Blank KVM RFA JPLA Module for Deluxe-Configurated Model without Keyless Go

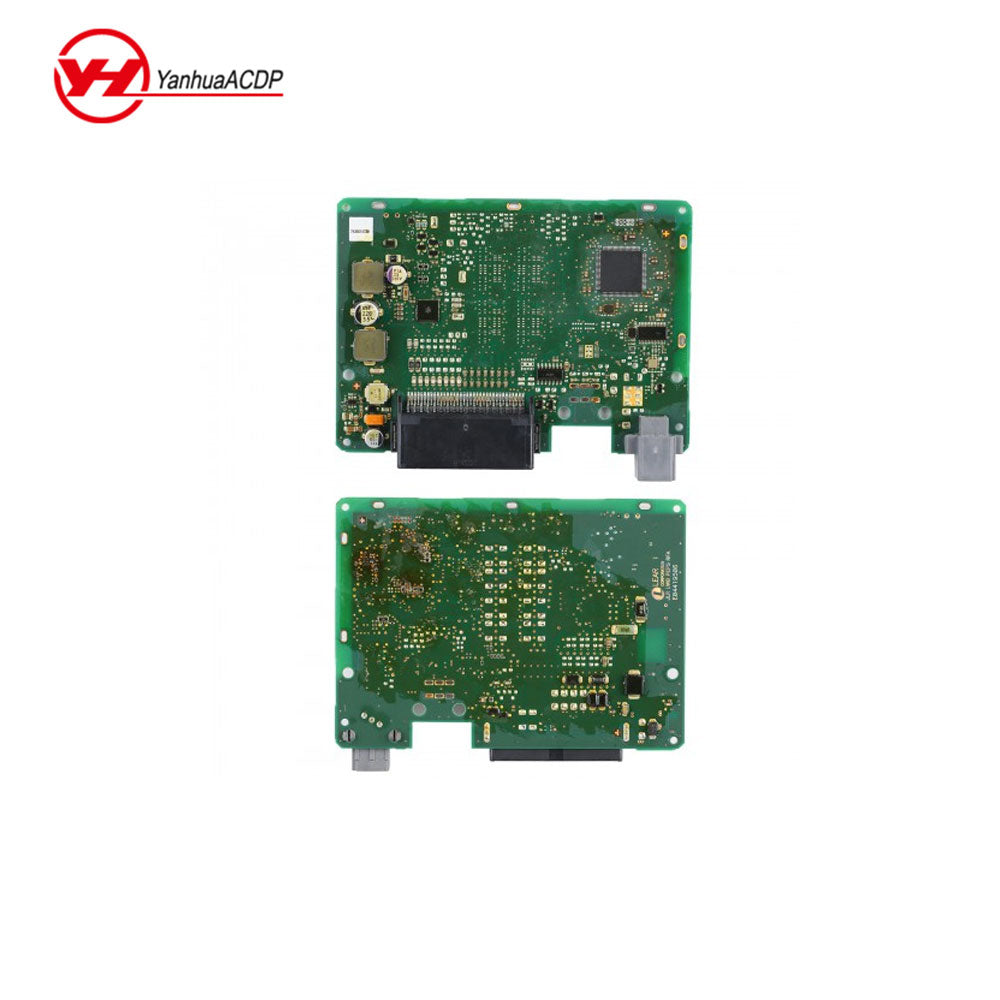

The module contains new CPU SPC560B chip and data. It Can be programmed by Yanhua Mini ACDP module 24 and OEM JLR programmer. With emergency start.

How to Replace the RFA module:

• Remove the original RFA module and replace with the new RFA module
• After installing new RFA module to the vehicle, connect Yanhua ACDP Module 24 with the vehicle via OBD, then program key and learn key via OBD.

• The new key must be a special key that can change ID (Lonsdor JLR 2018-2021 key). It Must select the key channel with key ID to duplicate key.
