*Wifi is required for key programming and diagnostics*

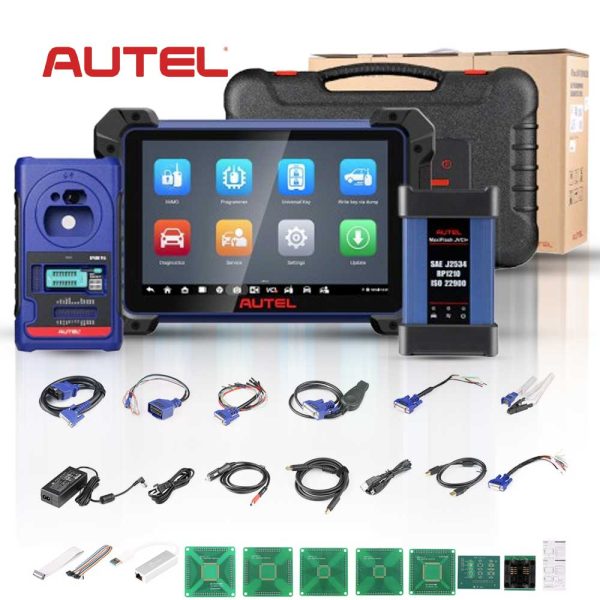

Autel IM608 II is the most advanced key programming tool that combines the power of AUTEL IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Highlights:

• IM608 II = IM608 PRO II
• No Area Restrictions, You Can Used It All Around the World without Limitation

• One Year Free Update Online
• Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration

• Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Worldwide, Include BMW, BENZ, VW, AUDI etc

• Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swedish, Italian, Portuguese, French, etc.)

• Works for 85% Cars In The Worldwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop

• Extended to Work with Autel MV108 MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly

• Main Features of Autel IM608 II:

  • IMMO & Key Programming Bundle
  • MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet
  • Program IMMO & Keys for U.S., Asian and European Vehicles
  • XP400Pro Key and Chip Programmer

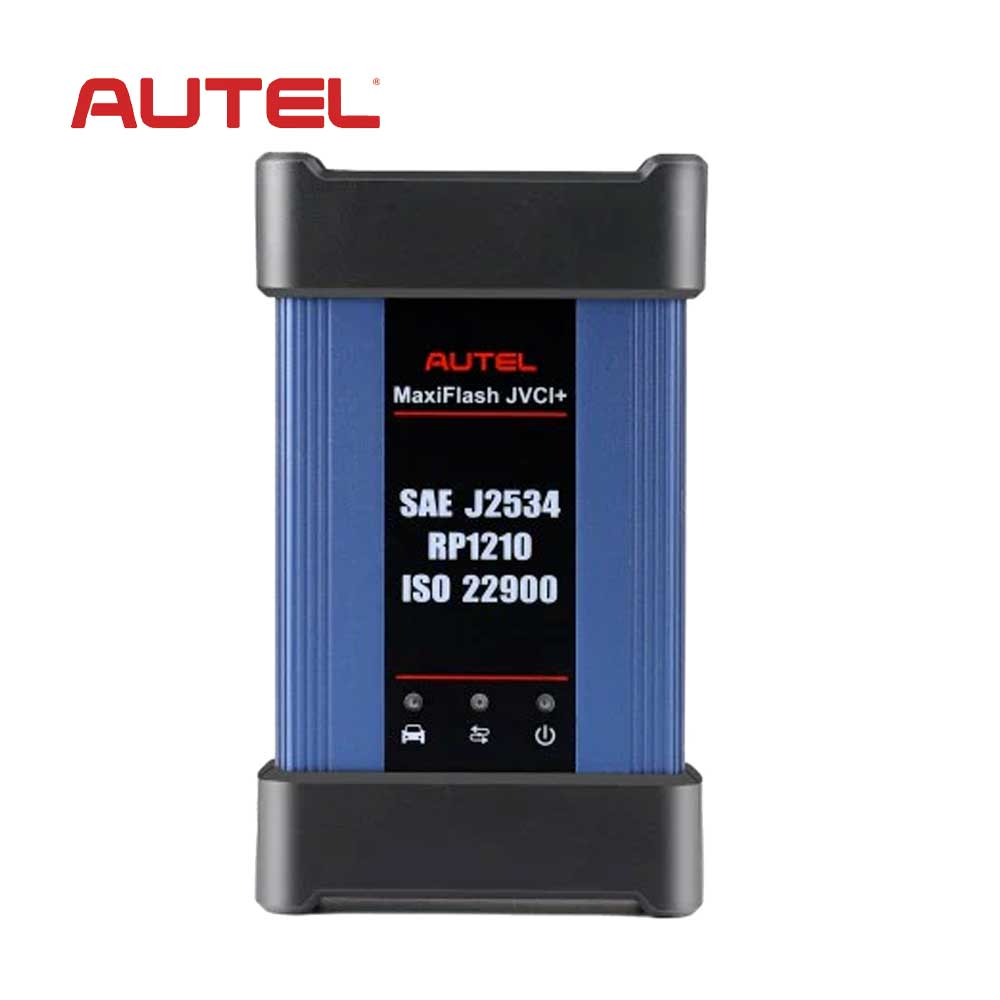

  • JVCI Wireless J2534 Pass Thru Programming Device
  • Bi-directional Control Active Tests

  • AUTEL IM608 II Supported Functions:

    1. IMMO Functions

    • Auto Detect Make Model Year System
    • Read PIN (All Key Lost)
    • Key Learning
    • IMMO ECU Reset Adaption
    • IMMO ECU Refresh Coding
    • Remote Learning
    • AUDI Q5 A4 A5 2015-2017 Key Learning
    • VW MQB Key Learning
    • BMW FEM BDC Key Learning and Adaptation
    • BMW CAS4 Key Learning and Adaptation
    • Mercedes Key Learning
    • 2015-2018 Land Rover & Jaguar write key via dump
    • Volvo Smart Key Learning knob-style smart key
    • Advanced Programming Functions

    • EEPROM Read Write
    • MCU Read Write
    • Key Programming
    • Mercedes Key Read Write
    • Remote Frequency Detect
    • OE-Level Diagnoses

    • 2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

      • Oil Service Reset
      • Parking Brake Pad Relearn After Replacement
      • Steering Angle Sensor Relearn
      • Battery Registration and Reset
      • Diesel Particulate Filter Regeneration
      • Tire Pressure Monitoring System
      • Active Test
      • ECU Coding
      • VW Audi Component Protection
      • Complete Service Functions

      • XP400 Pro adds support for following Chips:

        • EEPROM–>AMD–>AM29FXXX series chip
        • EEPROM–> FUJITSU–>MB29FXXX series chip
        • EEPROM–>ST–>M29FXXX series chip
        • Engine control module–>SIMTEC76(AM29F800BB) write
        • IMMO–>BENZ–>ESL_W209_W906 (Motorola) read write erase function
        • IMMO–>BMW–>EWS3 module read write function
        • REMOTE_RENEW(renew key)–>NEC–>V51 and V5 chip read write erase

        • XP400 Pro adds support for the following adapter board:

          • APB113 PCF79XX adapter board
          • APB114 EWS3 adapter board
          • APB115 NEC Adapter board
          • APB118 NEC ELV adapter board
          • APB119 TB28FXXX adapter board
          • APB120 TMS370 adapter board
          • APB121 AM29FXXX adapter board
          • APB122 AM29FXXX adapter board 1
          • APB123 AM29FXXX adapter board 2
          • APB126 M35080 D80 adapter board
          • APB127 MC68HC0(7)05BXX adapter board
          • APB128 MC68HC05X32 adapter board

          • Advanced Key Programming Functions:

            • Exclusive Smart Mode to guide Key Programming
            • Auto Read IMMO Data via OBD
            • One-tap Key Programming via OBD & Easy-to-use Remote Programming
            • With the newly upgraded key programmer XP400 Pro
            • Extensive Vehicle & Functionality Coverage
            • Support Diagnostics & IMMO Programming for 10,000+ Models;
            • Support Models Up to 2020;
            • All System Diagnostics and Advanced Maintenance Services;
            • Benz — 3rd Generation IMMO CAN-Line K-Line Add Key, All Key Lost via OBD;
            • BMW — Support EWS3 4; CAS 1 2 3 4, FEM BDC Add Key All Key Lost;
            • Volkswagen Audi — Add Key All Key Lost via OBD for 2013 – 2020 Models;
            • GM — Read IMMO Password, Add Key All Key Lost up to 2020;
            • Ford — Add Key All Key Lost (No PIN Needed) up to 2020;
            • Mazda — Add Key All Key Lost (No PIN Needed) up to 2020;
            • FCA — Read IMMO Password, Add Key All Key Lost up to 2020;
            • Renault — Add Key All Key Lost (No PIN Needed) up to 2020
            • Jaguar LandRover — Add Key All Key Lost up to 2019
            • Volvo — Semi-smart Key Learning via OBD up to 2018; Smart Blade Fobik Key Learning via Dump

            • Autel IM608 II supports working with IMKPA (Need to Buy IMKPA additionally):

              • Currently supports over 10 key unlock types
              • BMW EWS3 key learning
              • Benz NEC key learning
              • Benz ESL_W209 read write erase

              • Autel IM608 II and IM608 Pro Comparison List

                Product Model				IM608 II		IM608 Pro
                Accessories		VCI		JVCI+		JVCI
                Programmer		XP400Pro		XP400Pro
                Hardware Configuration		CPU		Qualcomm SDM660 Octa-core Processor 4x 2.2 GHz(A73) 4x 1.8 GHz(A53)		Samsung Exynos T5260 6-Core Processor: 4x 1.3 GHz(A7) 2x 1.7 GHz(A15)
                	OS		Android 10.0		Android™ 4.4.2, KitKat
                	Memory		4 GBRAM+128GB FLASH		2 GBRAM+64GB FLASH
                	Display		10.1 inches		10.1 inches
                	Resolution		1920*1200		1920*1200
                Battery		3.8V 15000 mAh		3.8V 15000 mAh
                BT		BT V5.0 + BR EDR		BT V2.1 + EDR
                DoIP		Yes		Adapter required
                CANFD		Yes		Adapter required
                Diagnostic function		Basic functions		Full Function		Full Function
                	Coding		Yes		Yes
                Programming		Mercedes-Benz BMW system		Mercedes-Benz BMW system
                IMMO Functions		Matching device		Full Function		Full Function
                	Programmer		EEPROM reading and writing, MCU reading and writing		EEPROM reading and writing, MCU reading and writing
                Key tool		Yes		Yes
                Remote expert				Yes		No

                Autel MaxiIM KM100 Universal Key Generator Kit

                MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

                Functions:

                • 60-Second Key Generation (Autel Universal Only)
                • Transponder Reading Writing Cloning
                • Frequency Detection and ignition Coil Detection
                • Compatible With Autel Blank Universal Smart Keys
                • Key Renewal: Supporting 36 Vehicle Makes
                • Transponder Editing: Supporting 20 Categories
                • Dual-Band, High-Frequency Transmitter 315 m 434 m or 868 m 915 m
                • Supporting Certification Requirements of Various Regions
                • Supporting PLC V200

                • Includes:

                  • KM-100 Universal Key Generator
                  • OBD Adapter
                  • 2 Universal Keys
                  • Hard Shell Carrying Case

                  • Technical specifications:

                    • OE-Level Quality
                    • Screen: Size: 5.5 Inch; Resolution: 1,280 x 720p
                    • 64G Memory, 2G RAM
                    • 8MP Camera
                    • Wi-Fi and Bluetooth
                    • Battery: 4,950 mAh

                    • Vehicle Compatibility:

                      • Support AutoVIN – Simple operation, guided user instructions easy to use.
                      • Industry-Leading Coverage of IMMO learning via OBD for more than 90% of models.
                      • Supporting 8 Key series and 37 models.

                      • Download:

                        • Specifications

                        • Video:
