Description

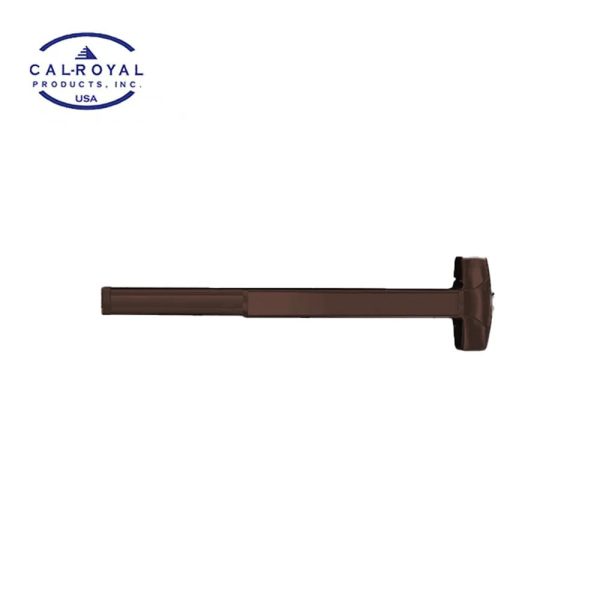

Cal-Royal – A7720EO48 – Rim Exit Device with 48 Door Width – Grade 1 – US10B – Dark Oxidized Satin Bronze Oil Rubbed (613)

Features:

• Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
• ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
• Conforms & Meets ADA Regulations.
• Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
• Trims are thru bolted for additional security.
• UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
• Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
• UL Listed for Fire Exit Hardware. 3 hours.
• (A) label rating on pairs of doors up to 8’0 x 8’0 swinging in same or opposite directions.
• Uncompromising security and safety in single and double-fire exit doors.
• Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.

• Specifications:

  For Doors		1-3 4 thick standard optional 2-1 4 thick. 4-1 2 minimum stile width for single or double door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims.
  Cover		Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out.
  Backset		2-3 4
  Chassis		Non-ferrous Alloy (Panic Grade), Steel (Fire Grade)
  Mounting		Furnished with wood and machine screws. Available thru-bolts on request.
  Handing		Non handed, center hub. 2-3 4 backset
  End Cap		Brass, Bronze or Stainless Steel construction
  Latch Bolt		Stainless Steel 3 4 throw with anti-pick feature
  Dogging Feature		Allen-type key furnished standard on non-fire labeled devices
  Rail Assembly		Heavy gauge extruded aluminum body with Stainless Steel push pad
  ANSI Standard		A156.3, Grade 1
  Spring		Stainless steel throughout
  Strike		938 packed standard
  Mullion		Available
  Finish		US10B – Dark Oxidized Satin Bronze Oil Rubbed (613)
  UL and ULC Listed		A7700 Series for panic. AF7700 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
