Description

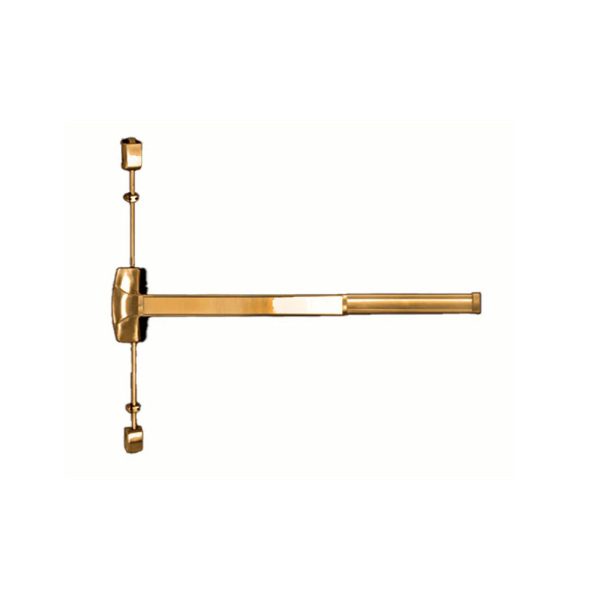

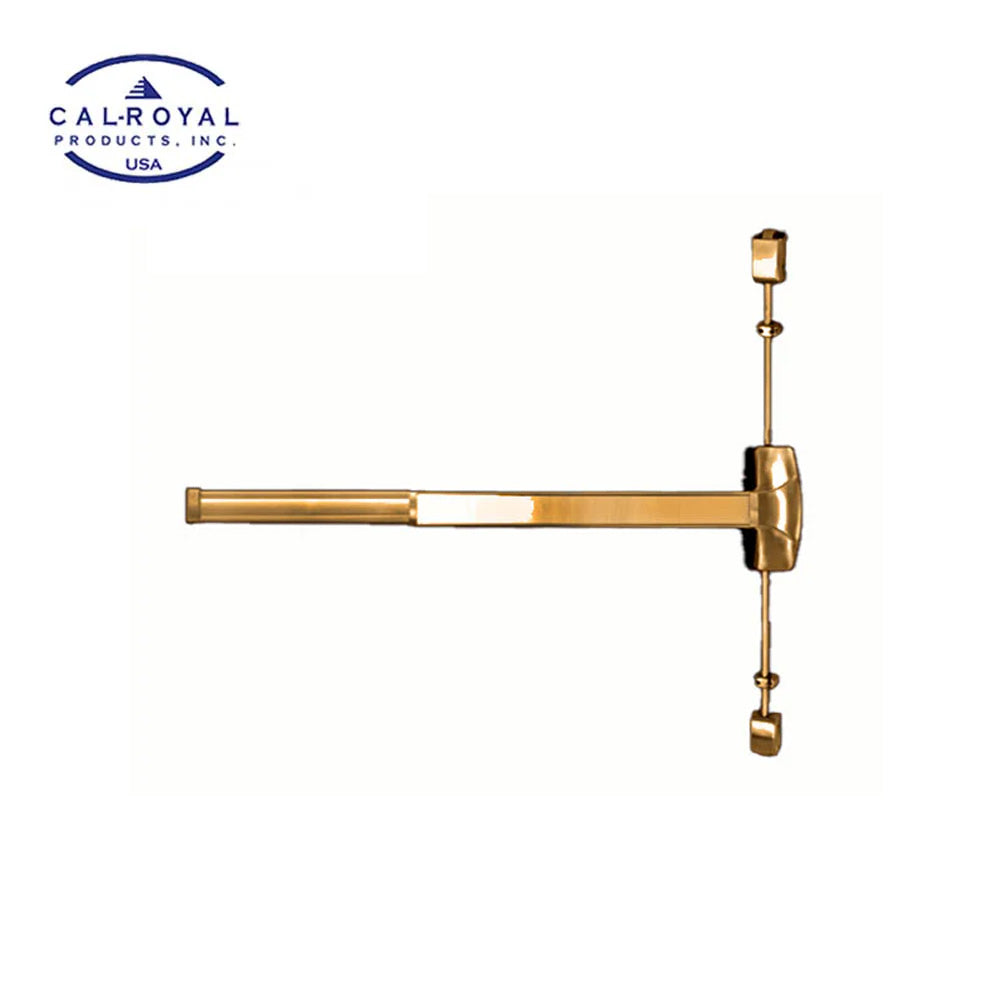

Cal-Royal – A7760V3684 – Surface Vertical Rod with 36 x 84 – Grade 1 – US3 – Bright Polished Brass (605)

Features:

• Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
• ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
• Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps.
• Trims are thru bolted for additional security.
• (A) label rating on pairs of doors up to 8’0 x 8’0 swinging in same or opposite directions.
• Uncompromising security and safety in single and double fire exit doors.
• Chassis mounted unit construction.

• Specifications:

  Door Thickness		1-3 4
  Top Chassis		Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade)
  Cover		Non-Ferrous plated material
  Mounting		Wood and machine screws
  Material		Aluminum
  End Cap		Brass, Bronze or Stainless Steel
  Latch Bolt & Spring		Stainless Steel
  Alarm		Available
  Handed		Right Left
  Spring		Stainless Steel
  Rail Assembly		Heavy gauge extruded aluminum body with Stainless Steel push pad
  Dogging		Allen key
  Applications		Wood or Hollow Metal Doors
  Dimensions		36 x 84
  Fire Rated		3 hours
  Certifications		ANSI A156.3, GRADE 1, UL Listed 10C, ADA
  Finish		US3 – Bright Polished Brass (605)

  Download:

  • Spec Sheet

  • Additional information

  Handed	Left, Right
