Description

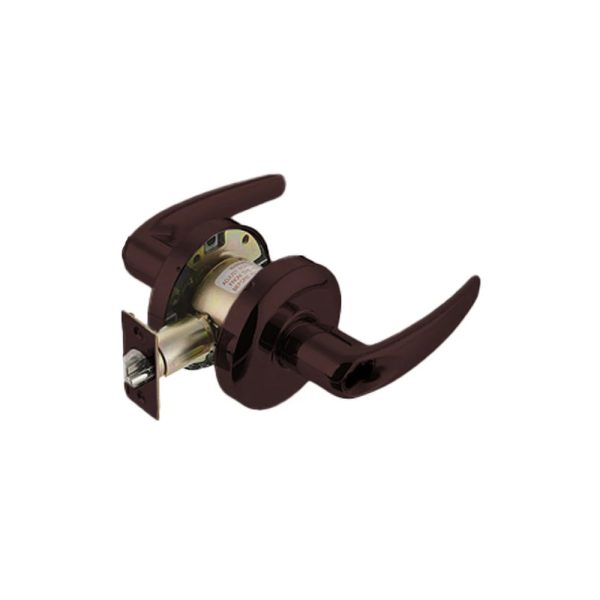

Cal-Royal – CAT00 – Commercial Lever Set Cylindrical Lock Turn Push Button with Schlage C Keyway and 2-3 4 Backset – Grade 1 – US10B – Dark Oxidized Satin Bronze Oil Rubbed (613)

Features:

• For Offices, schools, hospitals, apartments, hotel motel, residential, commercial and public buildings.
• Meets or exceeds BHMA ANSI A 156.2 series 4000, grade 1 requirements, GRADE 1.
• Heavy Duty Cylindrical Leversets.
• The clutch mechanism Fixed thru-bolt installation.

• Specifications:

  ANSI BHMA Standard		ANSI BHMA A156 2 series 4000 Grade 1
  Latch		1 2 throw, deadlocking – 1-1 8 x 2-1 4 face
  Strike		4-7 8 x 1-1 4 ASA ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
  Door Thickness		1-3 8 to 1-3 4
  Handing		Non-Handed
  Backset		2-3 4
  Lock Function		Entrance Office Lever
  Keyway		Schlage C
  Finish		US10B – Dark Oxidized Satin Bronze Oil Rubbed (613)
