Description

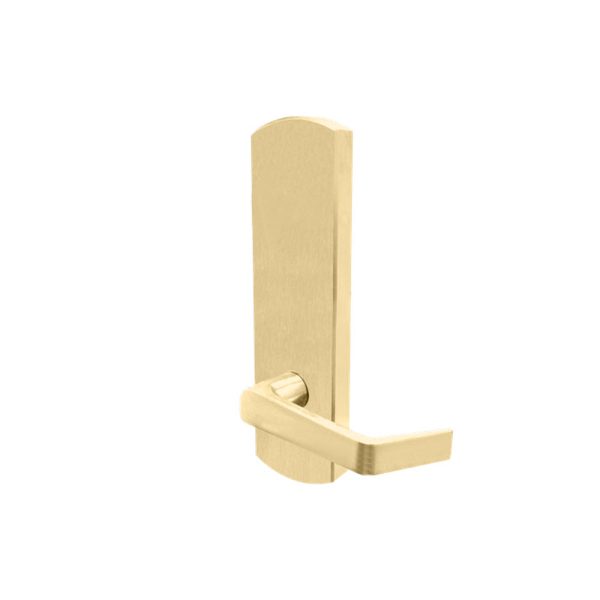

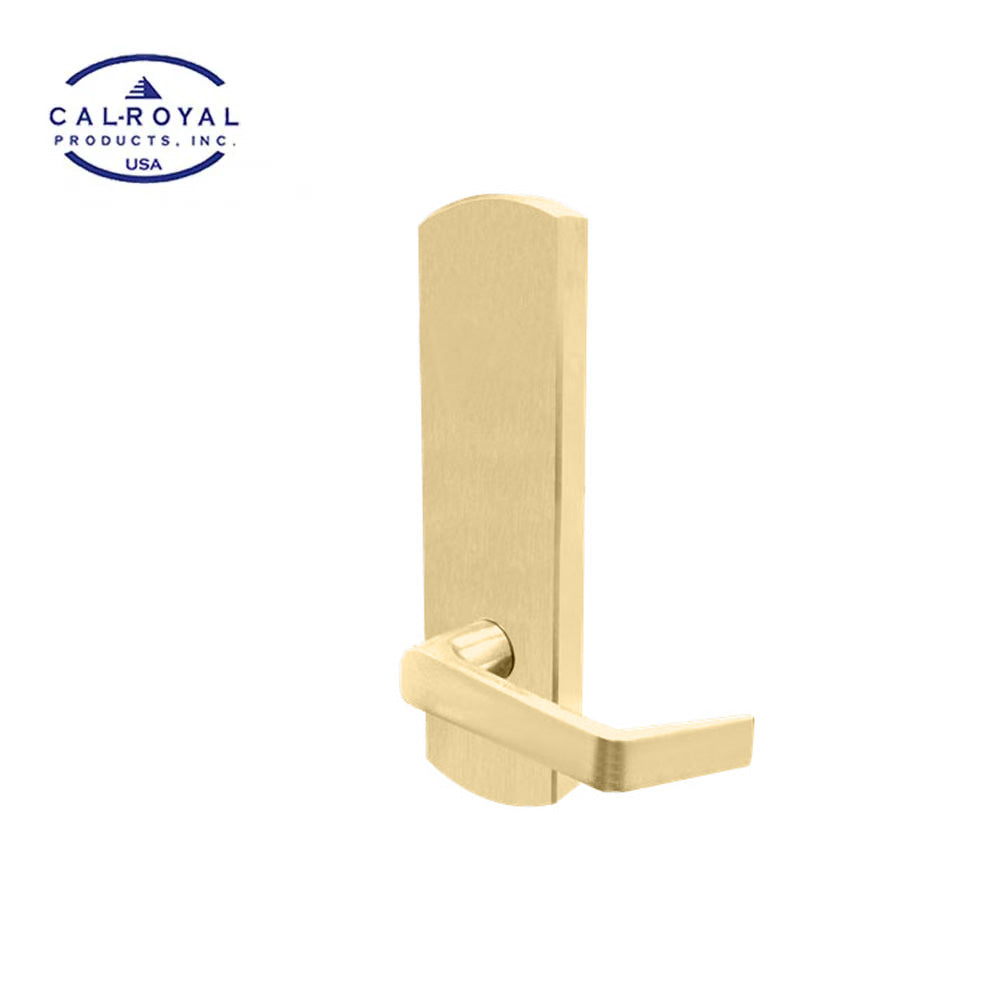

Cal-Royal – ESC7730 – Rigid Escutcheon Passage Lever Trim – US3 – Bright Polished Brass (605)

Features:

• For use with 7700 Series Devices.
• Rigid, non-clutch mechanism.
• Double heavy duty spring support to prevent sagging and enhance operation.
• Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
• Hardened steel heavy duty tailpiece. Available for fire and non-fire rated rim and vertical rod exit devices.

• Specifications:

  Application		Escutcheon Lever Exit Trim Application For 7700 Series exit devices
  Function		Passage – Trim always operable and free (ANSI 14)
  Handing		Non Handed
  Door Thickness		1-3 4 to 2-1 4
  Backset		2-3 4 standard
  Trim		Escutcheon Lever Exit Trim
  Escutcheon		Forged brass, 2-5 16 x 8-1 2
  Lever		4-3 4 long
  Finish		US3 – Bright Polished Brass (605)
  Certifications		ANSI Grade 1 Certified, UL – UL 10C UL Listed 10C, ADA

  Download:

  • Data Sheet

  • Additional information
