Description

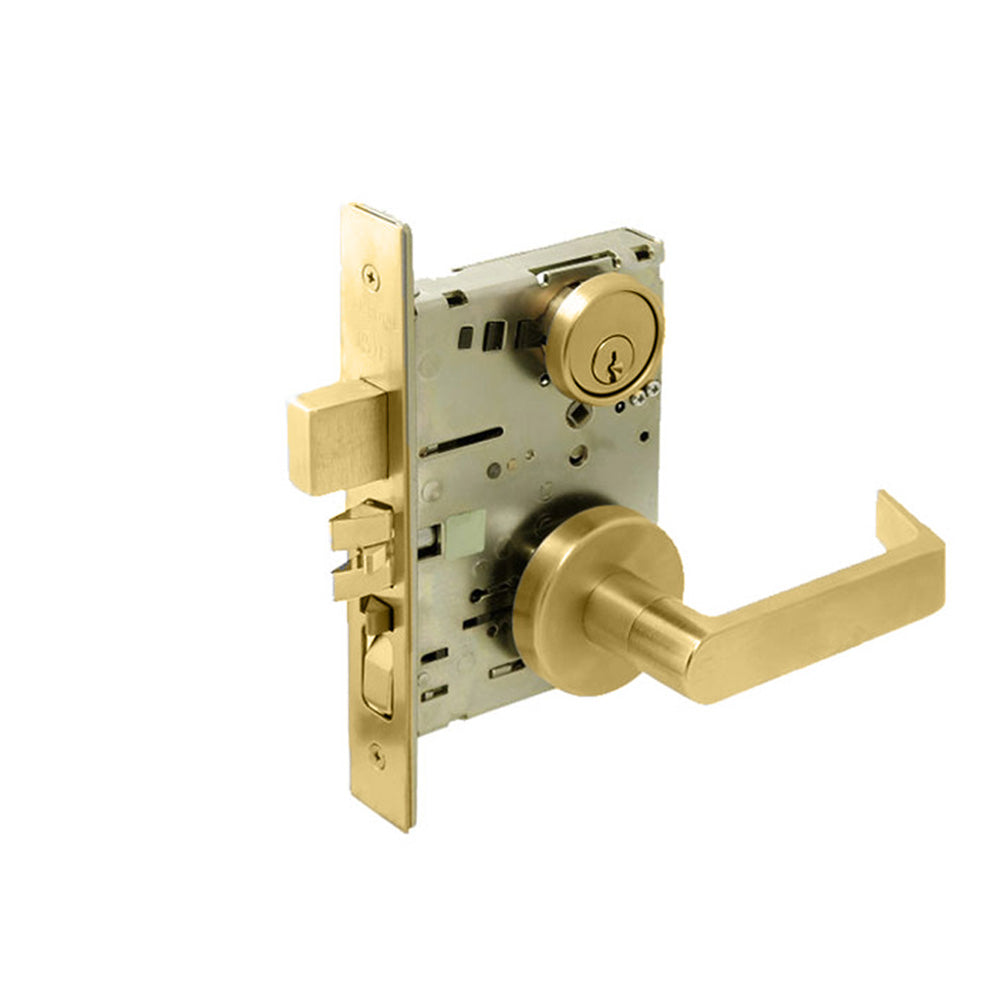

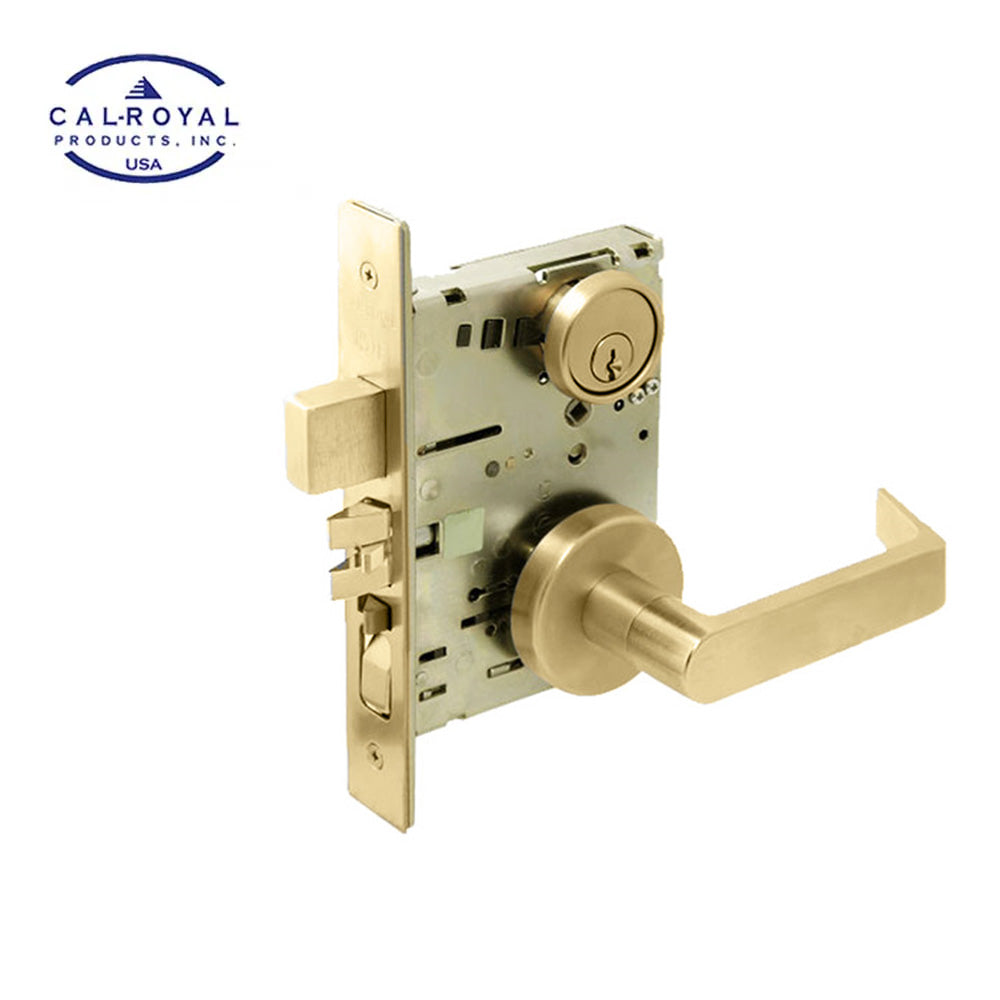

Cal-Royal – NM8050 – NM Series Heavy Duty Office Entrance Mortise Lockset with 2-3 4 Backset – Grade 1

Latch bolt retracted by key outside and inside lever when outside lever is locked. Outside lever retracts latch bolt unless outside lever is locked by operating toggle button. Outside lever is locked and unlocked by toggle button. Key outside locks outside lever only. When latch bolt is retracted by inside lever, outside lever remains locked. Auxiliary latch deadlocks latch bolt when door is closed. Inside lever is always free for immediate exit.

Features:

• BHMA Certified Lifetime Warranty, GRADE 1.
• Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty.
• UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
• Optional Interchangeable Core.
• Rust-proof heavy duty 2-3 4 backset lock case.
• Forged brass lever handles exceed requirements of ADA (American Disability Act).
• Individual spring to prevent lever sag, easily reversible.
• Auxiliary latch bolt.
• Armored front plate conceals lock mounting screws.
• 1 throw heavy duty deadbolt with anti-saw hardened pins.
• Heavy duty 3 4 latch bolt with anti-friction latch, easily reversible.
• Optional Electrified Locks available.
• Conforms & Meets ADA Regulations.

• Specifications:

  Function		F04 – Office Entrance
  Door Thickness		1-3 4 (44.5mm) standard
  Backset		2-3 4
  Lockcase		Heavy gauge zinc chromate steel
  Front		Heavy gauge steel 8 x 1-1 4 x 3 32 . Accommodates flat doors & doors beveled 1 8 in 2
  Armored Front		Wrought brass attached by machine screws to lockcase front
  Deadbolt		1 throw, brass, chrome plated with hardened steel rollers
  Latchbolt		Brass, chrome plated with heavy-duty deadbolt
  Guardbolt		Extruded brass, chrome plated
  Stopworks		Rocker type, brass, chrome plated
  Strike		Brass, non-handed curved strike 4-7 8 x 1-1 4 . Curved-up strike available upon request
  Handing		Right Left
  Trim Design		SS Sectional SE Escutcheon
  UL Listing		UL Listed A Label (3 hours), for use on fire doors, single or pair of doors. F mark stamped on strike
  ANSI BHMA		Meets ANSI BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal
  Escutcheon Dimension		2-1 2 W x 8-1 4 H x 1 2 T

  Finish:

  • US3 – Bright Polished Brass (605)
  • US4 – Clear Coated Satin Brass (606)
  • US10B – Dark Oxidized Satin Bronze Oil Rubbed (613)
  • US26 – Bright Chromium Plated (625)
  • US26D – Satin Chromium Plated (626)
  • US32D – Satin Stainless Steel (630)

  • Download:

    • Catalog

    • Additional information

  Color	US10B – Dark Oxidized Satin Bronze Oil Rubbed (613), US26 – Bright Chromium Plated (625), US26D – Satin Chromium Plated (626), US3 – Bright Polished Brass (605), US32D – Satin Stainless Steel (630), US4 – Clear Coated Satin Brass (606)
  Handed	Left, Right
  Trim Design	SE Escutcheon, SS Sectional
