Camden CX-ED2071 Low Profile Grade 2 ANSI Electric Strike for Cylindrical Locksets

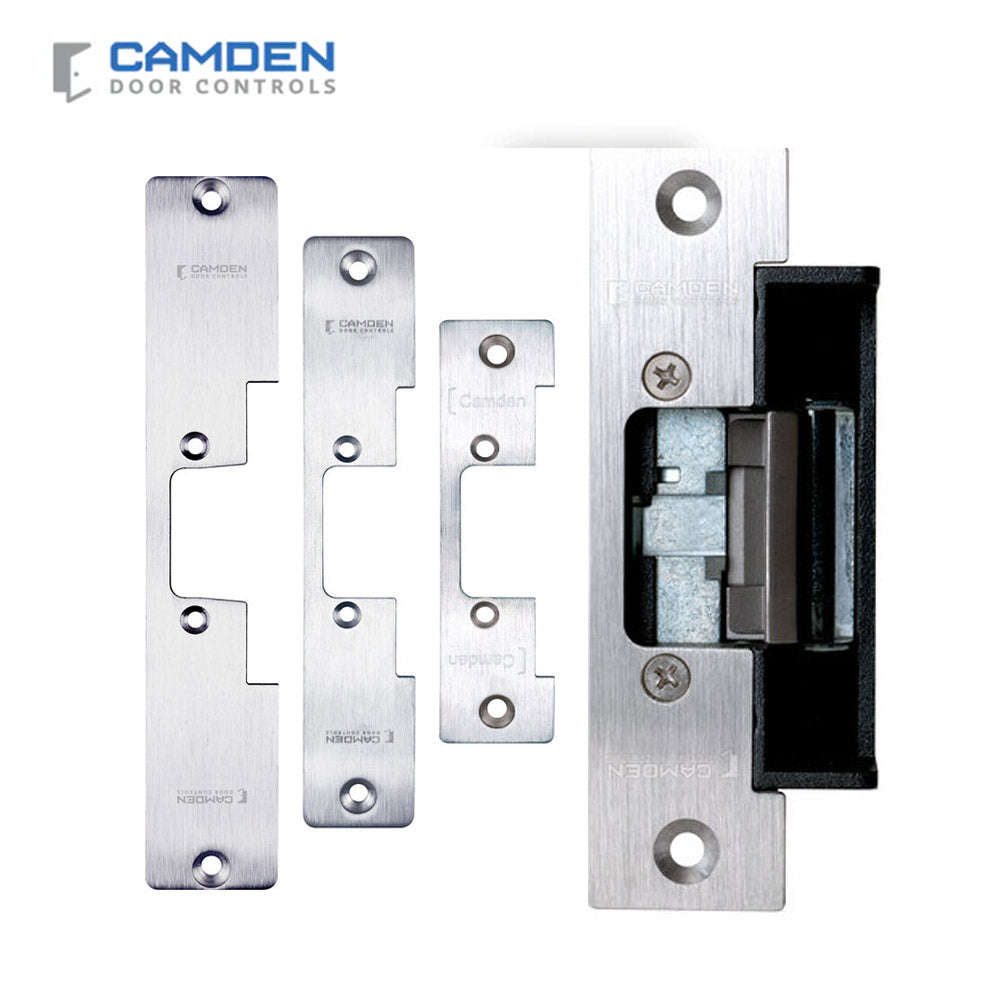

Camden s new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe fail secure operation and horizontal adjustment of the strike body.

Feature:

• Centerline latch entry for cylindrical locksets, 1 2 to 5 8 latch projection
• Selectable fail safe fail secure operation
• Horizontal adjustibility of strike body
• Low profile strike body
• 5 year warranty
• CX-ED2071: 8-16V AC DC

• Specifications:

  Voltage:		8-16V AC DC
  Current Draw:		305 mA @ 8 VDC, 625 mA @ 16 VDC 190 mA @ 8 VAC, 460 mA @ 16 VAC
  Static Strength:		1000 Lbs.
  Dynamic Strength:		50 Ft. Lbs.
  Endurance:		250,000 cycles (UL Verified)
  Mode:		Selectable fail safe fail secure
  Operation:		AC – Buzz DC- Silent
  Duty:		Intermittent
  Mounting:		Non-handed
  Dimensions:		3-3 8 H x 1-7 8 W x 1-7 32 D (86mm x 47mm x 31mm)
