Description

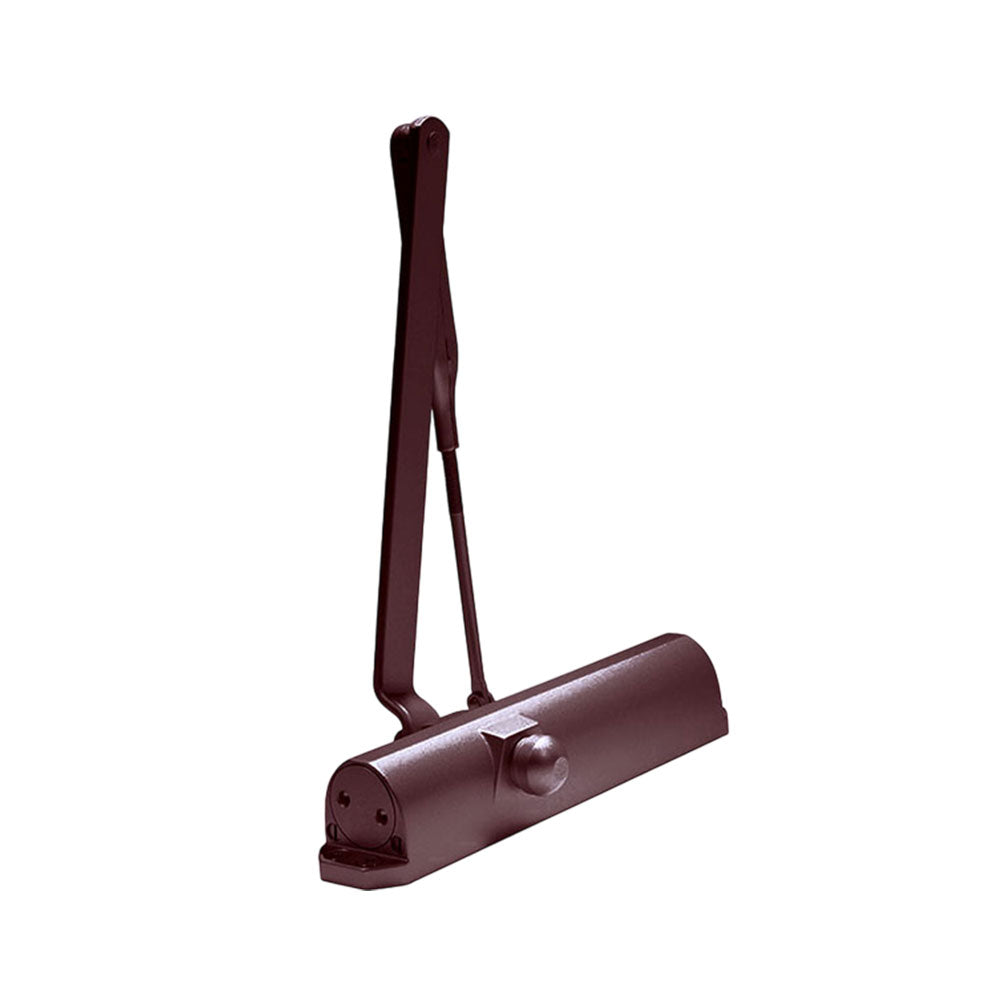

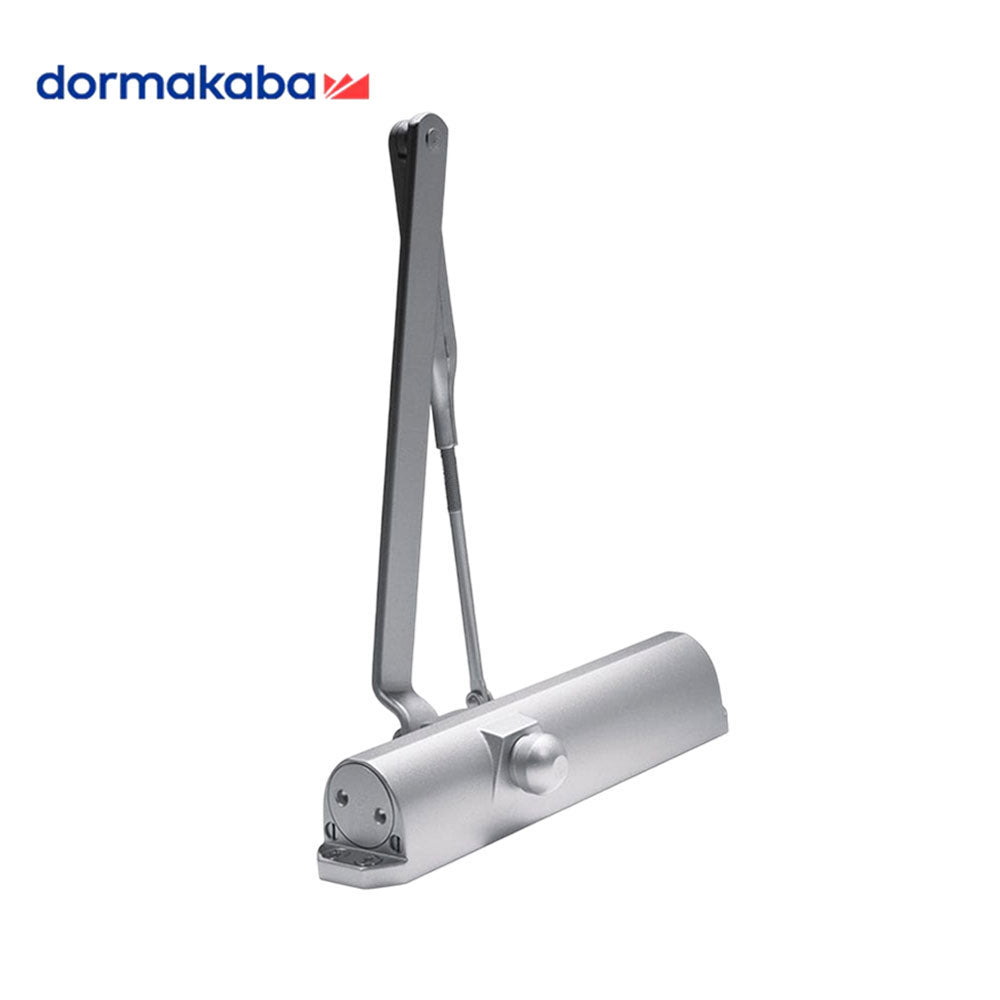

Dormakaba – 7400 Series – Surface Mount Closer with Round Arm Non-Hold Open – Tri-Pack – Grade 1

The 7400 Series door closer is featuring backcheck and adjustable spring sizes thus being the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install.

Features:

• Compact design
• Quick and easy to install
• Adjustable spring sizes 1-4
• UL and CL listed.
• Meets UL10C for positive pressure.
• ANSI BHMA A156.4 Grade 1 certified.
• CSFM Approved.

• Product Specifications:

  Grade		Grade 1
  UL Listing		UL Listed
  ANSI		A156.4

  Technical Specifications:

  Type		Surface
  Mounting Group		Hydraulic
  Mounting Style		Tri Mount
  Hold Open		No
  Back Check		Adjustable
  Degree Swing		180 Deg.
  Closer Size		1 to 4 3 to 6
  Arm Type		Round Arm Non-Hold Open

  Downloads:

  • Installation Instructions

  • Additional information

  Color	Aluminum Painted (689), Dark Bronze Painted (695), Gold
  Screw	Included, Not Included
  Spring	1-4, 3-6
