Description

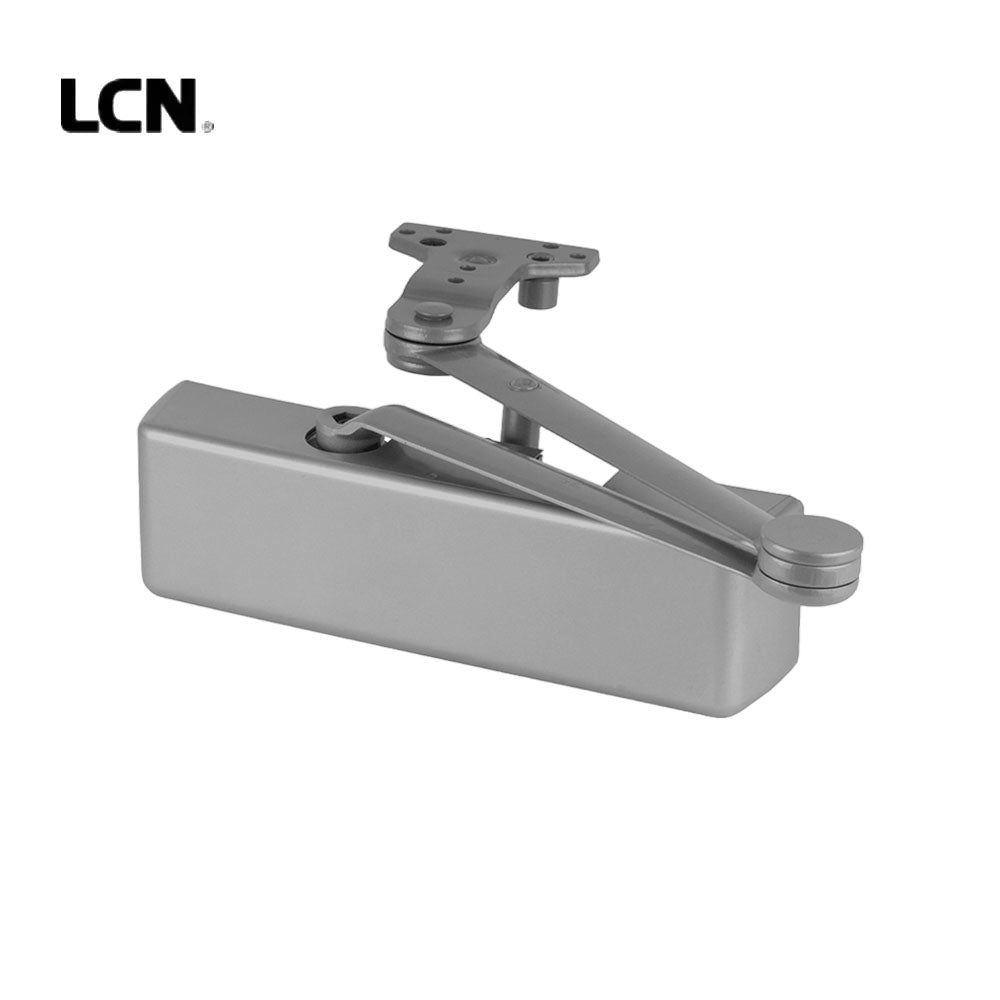

LCN – 4040XP-HCUSH – Surface Door Closer – Hold Open Cush Arm – Non-Handed – Adjustable Size 1-6 – Plastic Cover – Grade 1 – 689 (Aluminum Painted Finish)

The 4040XP is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
The patented green dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won t let you down no matter how many people go through the door or how hard they kick, push or slam against it.

Features:

• Cast iron cylinder with full-complement bearing
• 3 4 diameter piston
• Double-heat treated steel pinion journal
• All-weather Liquid X fluid
• LCN patented Green Dial spring force indicator
• Universal non-handed
• Peel-n-stick template and snap-on cover
• Adjustable spring sizes 1-6

• Product Specifications:

  Vendor		Allegion
  Manufacturer		LCN
  UID		LCN1004040XPHCUSHAL
  Grade		Grade 1
  UL Listing		UL 10C
  Unit of Measure		Each
  Origin		USA
  BAA Qualified		Yes
  Installation		Commercial
  Fire Rating		3 Hours {A}
  ADA Compliance		Yes
  Base Material		Varies
  ANSI		A156.4
  Finish		689
  Finish Description		Aluminum Painted

  Technical Specifications:

  Handing		Non-Handed
  Type		Surface
  Mounting Group		Hydraulic
  Back Check		Adjustable
  Closer Size		1 to 6
  Cold Weather Fluid		Yes
  Cover		Plastic
  Hold Open		Yes
  Degree Hold Open		Adjustable
  Mounting Location		Push Side
  Mounting Style		Parallel Arm
  Degree Swing		110 Deg.
  Delay		No
  Hold Open Type		Knob
  Screw Type		Self-Tapping
  Stop		Dead Stop
  Through Bolts		No
  Arm Type		Parallel Arm, Heavy Duty Turn Hold
