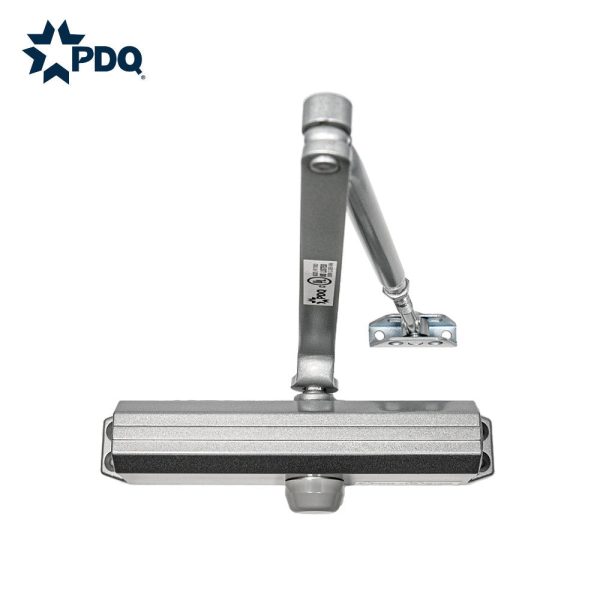

PDQ 3100 – Light Duty Door Closer – Grade 1

The 3100 Light Duty Door Closer. Built to Grade 1 commercial standards, it ensures reliable operation and durability. The slim profile of the 3100 Surface Door Closer fits seamlessly into various architectural styles. Featuring a robust design and available in multiple finishes, including 605 (US3), 626 (US26D), and more, it offers both functionality and aesthetic appeal. Ideal for moderate traffic areas, this surface door closer meets ANSI BHMA standards for performance and reliability. Connect with our sales team today to find the perfect door closer solution for your commercial needs.

Features & Benefits:

• Crafted with a high-strength cast aluminum body to ensure durability and reliability in light-duty commercial settings
• Choose optional streamline plastic covers for enhanced aesthetics
• Available in 4 distinctive finishes: 689(SP28), 693(SPBLK), 695(SP313), 696(Gold)

• Certifications:

  • Approved for UL-listed 3-hour fire doors
  • It adheres to ANSI BHMA A156.4 standards, which guarantees robust performance in demanding environments
  • It meets accessibility requirements with full ADA compliance and adherence to ICC ANSI 117.1 standards for accessible and usable buildings

  • Specification:

    Body		High Strength Cast Iron
    Arm Options:		PA – Parallel Arm HO – Hold Open DS DSHO – Heavy Duty Parallel Arm Stop RA – Regular Arm SCS SCSHO – Heavy Duty Parallel Arm Cushion Stop TA TAHO – Track Arm EDA EDAHO – Extra Duty Parallel Arm PS – Pivot Stop Arm
    Adjustment		Separate hydraulic backcheck standard Hydraulic controlled closing standard
    Size		3101 = Adjustable BF – 4 3100 = Adjustable 3 – 6
    Mounting		Common 9-1 16 x 3 4 mounting hole pattern retrofits Yale 50, Norton 1600 Tri-packed for regular, top jamb and parallel arm installations Includes sex nuts bolts and screws for wood, metal doors frames Self drilling self tapping screws standard Separate limiting stop may be required for high abuse applications
    Cover		treamline plastic cover optional
    Finished		689 – Aluminum 693 – Black 695 – Duro Bronze 696 – Gold
    Warranty		Twenty-five (25) year Limited Warranty
    Certifications, Listings, Compliances		UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI BHMA A156.4 Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC ANSI 117.1 for Accessible and Usable Buildings TAA compliant. Country of origin: KR

    Download:

    • Data Sheet
    • Installation Instruction
      • 3100 Parallel Arm
      • 3100 Regular Arm
      • 3100 DS DSHO – Heavy Duty Parallel Arm Stop

      • • Additional information

    Arm Type	Hold Open Arm, Parallel Arm
    Color	Aluminum Painted (689)
