Description

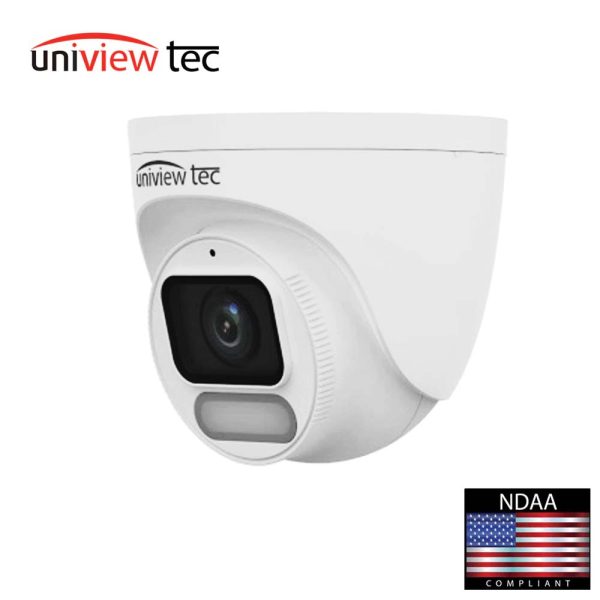

Uniview Tec IPT4WI28X Fixed Lens Turret Camera 4MP Colorhunter+ WDR AI

Features:

• Fully adheres to National Defense Authorization Act (NDAA) guidelines
• ColorHunter+ technology ensures ultra-high color image up to 0.0003 Lux (F1.0, AGC ON)
• Exceptional video quality with 4MP, 2688 x 1520 resolution
• H.265 video compression for drastically reduced bandwidth and storage requirements
• Powerful white light operation up to 98 feet
• 2.8mm fixed lens; ONVIF Profile S compliant
• Exceptional night time color image and WDR functionality
• Dual video streams, built-in mic, smart illumination, digital defog and 3D DNR
• Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
• PoE & 12VDC power options and optional wall and pendant mounts available
• Built-in micro-SD card slot enables local storage up to 256GB
• 3-way axis, CE and IP67 weather resistant
• Supported by Uniview Tec Guard Station software, as well as Guard Live and Guard Viewer mobile apps for iPhone and Android devices

• Specifications:

  Camera
  Max Resolution		4MP
  Sensor		1 1.8 CMOS
  Minimum Illumination		Color : 0.0003 lux (F1.0, AGC ON)
  Shutter		Auto Manual, 1 ~ 1 100000s
  Adjustment Angle		Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
  S N		>52dB
  WDR		120dB
  Lens
  Focal Length		2.8mm
  Iris Type		Fixed
  Iris		F1.0
  Field of View (H)		110.4°
  Field of View (V)		60.5°
  Field of View (O)		115.2°
  DORI
  DORI Distance		2.8mm – Detect: 43.4m, Observe: 17.4m, Recognize: 8.7m, Identify: 4.3m
  Illuminator
  Illumination Distance		30m
  Light On Off Control		Auto Manual
  Video
  Video Compression		H.265; H.264; MJPEG
  Frame Rate		4MP (2688×1520) @25fps, 1080P (1920×1080) @30fps
  Video Bit Rate		128 Kbps ~ 6144 Kbps
  White Balance		Auto; Outdoor; Fine Tune
  Digital Noise Reduction		2D 3D DNR
  Defog		Digital Defog
  Events
  Basic Detection		Motion Detection, Tampering Alarm, Audio Detection
  Audio
  Audio Compression		G.711U; G.711A
  Audio Bitrate		64 Kbps
  Storage
  Edge Storage		Micro SD, up to 256 GB
  Network
  Protocols		IPv4, IPv6, TCP, UDP, HTTP, HTTPS, ONVIF
  Compatible Integration		ONVIF (Profile S, Profile G, Profile T)
  Interface
  Built-in Mic		Support
  Network		1 x RJ45 10M 100M Base-TX Ethernet
  Certifications
  EMC		CE-EMC, FCC
  Safety		CE LVD, UL CUL
  General
  Power		DC 12V±25%, PoE (IEEE 802.3af)
  Dimensions		Φ118x106mm (Ø4.6” x 4.2”)
  Weight		0.48kg (1.06lb)
  Material		Metal + Plastic
  Operating Temperature		-30 °C ~ 60 °C (-22 °F ~ 140 °F)
  Protection		IP67

  Download:

  • Datasheet
  • User Manual
  • Installation Guide
  • Mini Dome Cameras Quick Guide
